Steam Powered iPod Charger

Author: | Posted in Uncategorized No comments

Thomas writes:

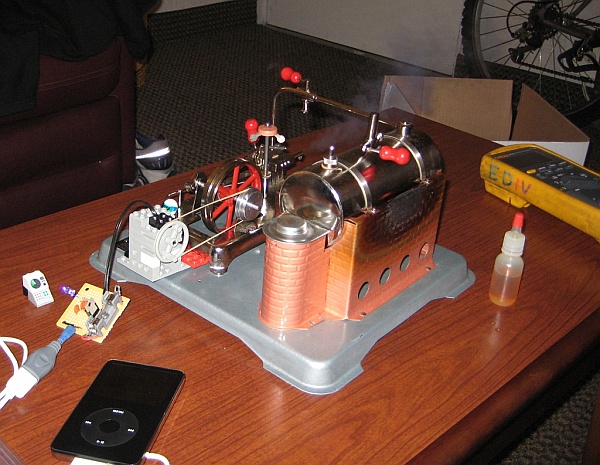

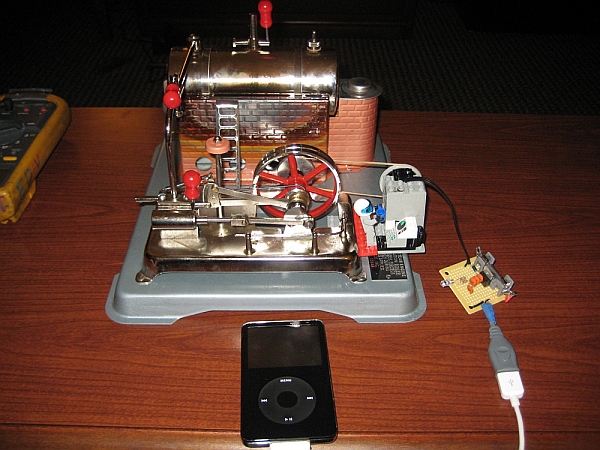

Hi, thought you might get a kick out of my latest project. I coupled a Lego Technic Motor to a Jensen #75 steam engine to make a crude generator. From there I built a 5V regulator circuit and soldered in a female USB connection to power any USB device. Since I wanted to use it to charge my iPod, I put in a diode and a .5 amp fuse to provide some circuit protection. Attached are some pictures of it and here are some links to videos of it in action. Unfortunately you can’t see the charge light on the ipod, But as you can hear, the iPod really loads the engine. I was somewhat surprise it could hack it.

That’s really cool! Thanks Thomas!  More pics after the cut . . .

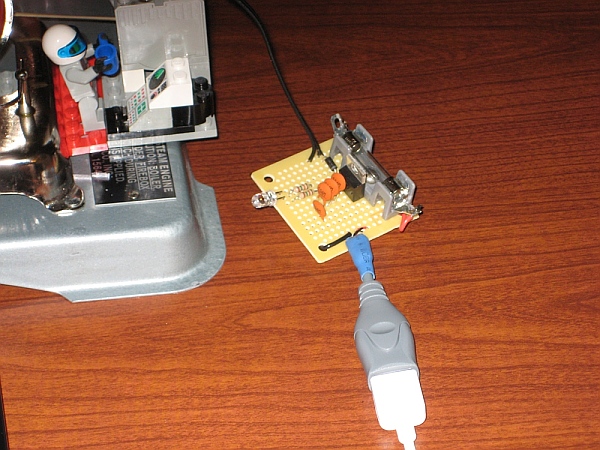

I just love that the unit has a console operator!
