DIY Vibratory Tumbler

Author: | Posted in Favorites, Projects No comments

My latest feat of post-apocalyptic engineering. Post-apocalyptic engineering is when you use parts on hand no matter what. There is no going to the hardware store because THERE IS NO HARDWARE STORE!!

When I built the Girl Genius Radio Theater Microphone I had some brass plates water-jet cut and I bought a vibratory tumbler to polish them. The tumbler came from Eastwood and while it did a very nice job on the parts for the microphone, it failed shortly thereafter. When I took it apart I found that the bearings in the motor were shot, they had been destroyed by the vibration.

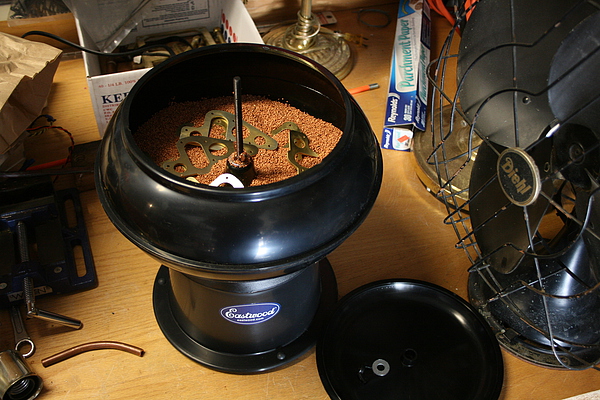

polishing brass in a vibratory tumbler

So I keep the two plastic bowls and the media that came with the machine and I set about making a new, tougher, vibrating unit. I began with the vibrating plate, which I milled from a scrap piece of cast aluminum I had hanging about.

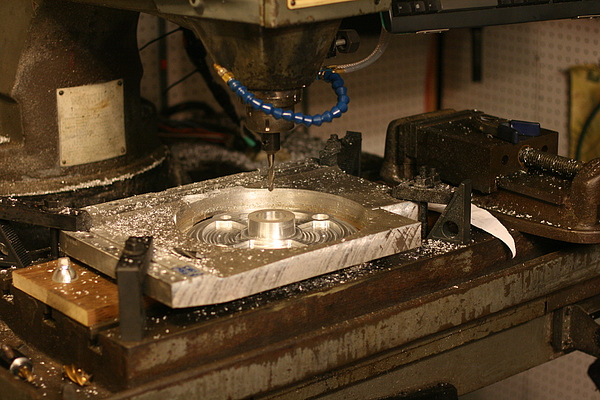

CNC milling a cast aluminum plate

I mounted a ball bearing in the plate that was a couple of orders-of-magnitude heftier than the original bearings. I mount springs, using what I had (watch the video to learn why this was a mistake!).

Buick valve springs and Razor scooter suspension springs

The base was made from a pair of old Volkswagen brake drums.

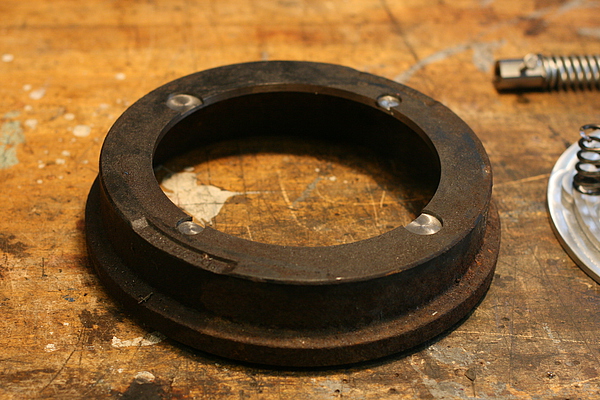

Milled brake drum top plate vibratory tumbler

The flexible shaft was fabricated on my CNC mill. I milled a couple of flats onto the bottom of an old lathe chuck that I had and then clamped that in the vice. It made making round parts WAY easier than having to find the center every time.

spring coupler for vibratory tumbler

Short plates with screw holes retained the springs.

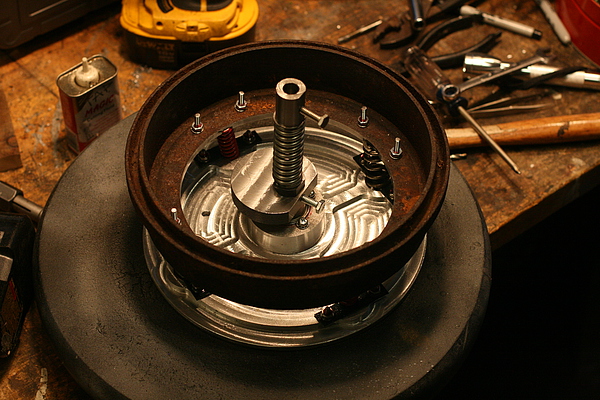

offset wieght and bearing for vibratory tumbler

The first offset weight I tried proved to be too heavy, so I fabricated this system to let me try different weights.

brass offset weight vibratory tumbler

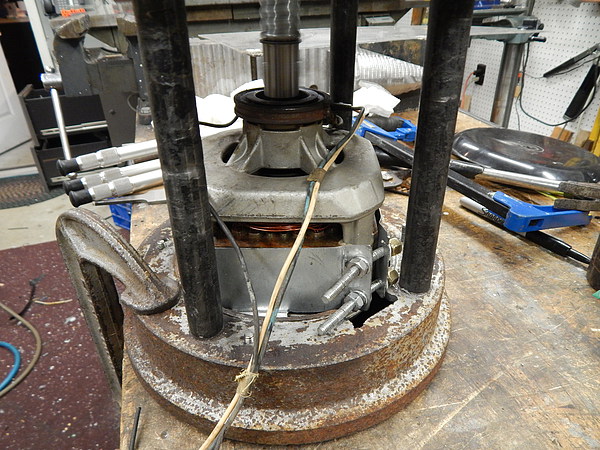

The 1725 RPM dryer motor was held in place with a sheet metal bracket.

another brake drum for the vibratory tumbler base.

The finished tumbler! Watch the video to see it in action!
