Toner Transfer Fuser

July 26, 2013

It turned out the that motor on the fuser assembly was 24 VAC and I blew it right up with 110 VAC!

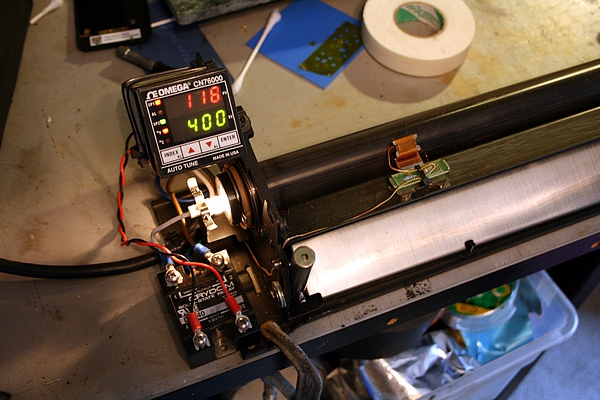

But the heater is a 110 volt 1500 watt halogen bulb and a little rummaging through my junk box produced a 240 VAC solid state relay (which seems to work just fine on 110 volts and an Omega K-type thermocouple temperature controller. I tucked the thermo couple under the Kapton tap on the original thermistor temperature sensor and wired up the controller and SSR to the heater lamp. Q.E.D.

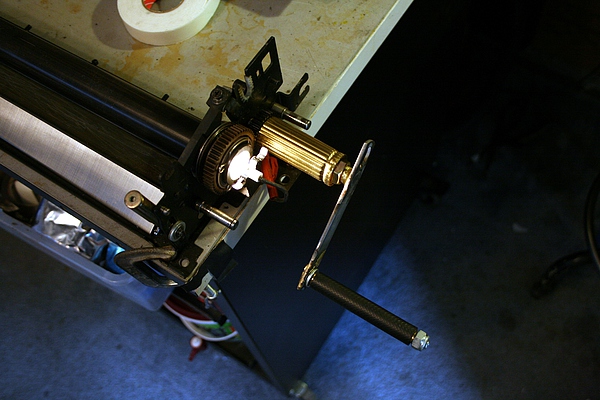

I'm still looking for and appropriate motor to run the fuser, but in the meantime this cobbled-up crank works just fine.

January 28, 2007

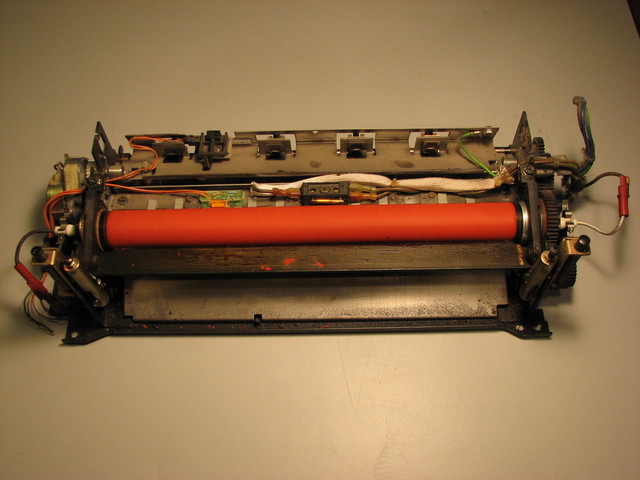

This weekend I picked up an old copier for $10 to strip for parts.  There were lots of motors, optics, and hardware within, but the real gem was this 11" toner fuser assembly.  The heater element is a 1300 watt quartz light bulb and the rollers are coated with a nice dense silicone rubber.  The little motor you see on the left side is actually for an oil soaked fiber belt that has been removed from the assembly.  The belt either lubricated or cleaned (or perhaps both) the fuser rollers.

With the appropriate motor and temperature controller this assembly will make and ideal tool for transfering toner images to brass sheet or printer circuit boards

Next steps are to fashion a base and couple a suitable feed motor to the assembly.  Then an electronic motor speed controller and a temperature controller will need to be built.
